• (4) 15" x 7" argent full-face steel wheels
• 117-amp alternator
• 19 gallon fuel tank
• 3.07 axle ratio
• 4-wheel drive
• 600-CCA maintenance free battery
• Black fold away exterior mirrors
• Black front/rear fender flares
• Body-color grille
• Cargo tie down loops
• Cigar lighter
• Command-Trac part-time shift-on-the-fly 4WD transfer case (NVG231)
• Driver & front passenger next generation airbags w/passenger side switch
• Electronic AM/FM stereo radio w/cassette-inc: digital clock, fixed antenna, (2) front speakers, rear overhead sound bar w/(2) speakers
• Floor drain plugs
• Fold & tumble rear seat
• Folding soft top w/soft windows
• Front/rear stabilizer bars
• Glove box w/lock
• Half height metal doors w/vinyl uppers
• Halogen headlamps
• Height-adjustable front shoulder belts
• Low pressure gas-charged shock absorbers
• Matching removable folding rear seat
• Mini floor console w/(1) cupholder
• Pwr front disc/rear drum brakes
• Pwr recirculating ball steering
• Quadra-link suspension w/live solid axles, locating arms & coil springs
• Removable front seat area carpeting
• Restricted use spare tire w/outside carrier
• Shift indicator warning lamp
• Skid plates-inc: transfer case, fuel tank
• Sport bar w/full padding
• Tachometer
• Tethered gas cap
• Vinyl high-back reclining front bucket seats

• Cargo tie down loops
• Cigar lighter
• Electronic AM/FM stereo radio w/cassette-inc: digital clock, fixed antenna, (2) front speakers, rear overhead sound bar w/(2) speakers
• Floor drain plugs
• Fold & tumble rear seat
• Glove box w/lock
• Matching removable folding rear seat
• Mini floor console w/(1) cupholder
• Removable front seat area carpeting
• Removable rear seat/cargo area carpeting
• Shift indicator warning lamp
• Sport bar w/full padding
• Tachometer
• Vinyl high-back reclining front bucket seats

• (4) 15" x 7" argent full-face steel wheels
• 117-amp alternator
• 19 gallon fuel tank
• 3.07 axle ratio
• 4-wheel drive
• 600-CCA maintenance free battery
• Command-Trac part-time shift-on-the-fly 4WD transfer case (NVG231)
• Front/rear stabilizer bars
• Low pressure gas-charged shock absorbers
• P215/75R15 all-terrain SBR BSW "Wrangler" tires
• Pwr front disc/rear drum brakes
• Pwr recirculating ball steering
• Quadra-link suspension w/live solid axles, locating arms & coil springs
• Restricted use spare tire w/outside carrier
• Skid plates-inc: transfer case, fuel tank
• Tethered gas cap

• Driver & front passenger next generation airbags w/passenger side switch
• Height-adjustable front shoulder belts

4.0L (242) SMFI I6 "POWER TECH" ENGINE

• (STD)

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicles
• Mileage
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 19
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 117
• Cooling System
• Total Cooling System Capacity (qts): 15.0
• Weight Information
• Base Curb Weight (lbs): 3316
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 300
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 300
• Suspension
• Suspension Type - Front: Solid Axle
• Suspension Type - Rear: Solid Axle
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Power
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 9.0 x 2.5
• Tires
• Front Tire Order Code: TMS
• Rear Tire Order Code: TMS
• Front Tire Size: P215/75R15
• Rear Tire Size: P215/75R15
• Spare Tire Size: Compact
• Wheels
• Front Wheel Size (in): 15 x 7
• Rear Wheel Size (in): 15 x 7
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), Overall: - TBD -
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 33.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Exterior Dimensions
• Wheelbase (in): 93.4
• Length, Overall (in): 155.4
• Width, Max w/o mirrors (in): 66.7
• Height, Overall (in): 71.1
• Track Width, Front (in): 58.0
• Track Width, Rear (in): 58.0
• Min Ground Clearance (in): 8.5
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): 42.5
• Cargo Area Width @ Beltline (in): 57.5
• Cargo Box Width @ Wheelhousings (in): 35.6
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 38.9
• Cargo Volume to Seat 2 (ft³): 11.5
• Interior Dimensions
• Passenger Capacity: 4
• Passenger Volume (ft³): 51.4
• Front Head Room (in): 42.3
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 51.9
• Front Hip Room (in): 51.0
• Second Head Room (in): 40.6
• Second Leg Room (in): 34.9
• Second Shoulder Room (in): 57.3
• Second Hip Room (in): 43.5
• Summary

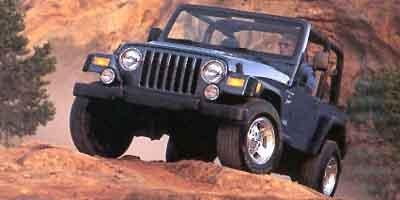

• Vehicle Name: Jeep Wrangler
• Body Style: 2 Door
